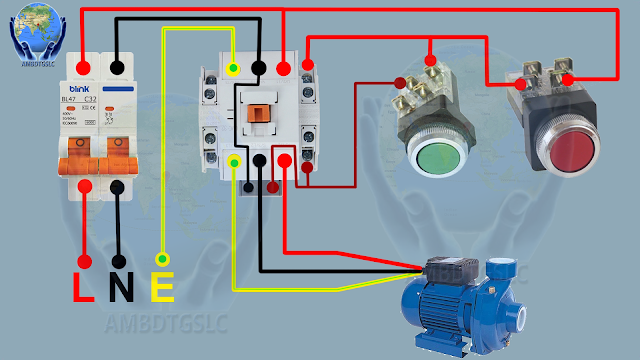

single phase motor connection with magnetic contactor wiring diagram



video link: https://youtu.be/CpzwOXIxu8g

Hello friend, I have shown in this img how to make a single phase motor magnet contact collection, Magnet contact is an important device, and it can be used on highrods, it doesn't burn easily, and it doesn't break easily, so we use magnet contact most of the time, We use magnet contacts of single phase and different three phase motors,
